BHawthorne wrote:Anyone know if it supports 2x1 spanning? Is this 900-series specific or will it work on 700-series too?

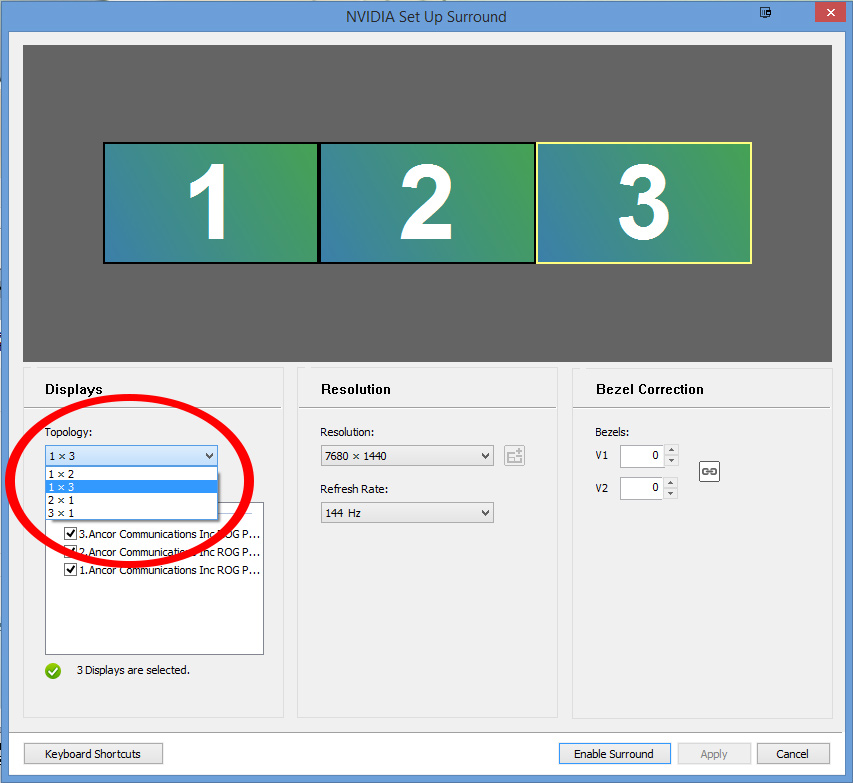

Looks like 1 x 2 and 2 x 1 are options (I have 980). I didn't click on them since I like my setup and my computer just got jacked up trying to mess with it (I'm just happy it works now, so I'll leave it alone).

BHawthorne wrote:Slightly OT but doesn't hurt to ask, anyone know if the current Nvidia 3D Vision Surround works in portrait mode? A few years ago I knew it didn't. With the changes in Nvidia Surround I thought I'd revisit the question again.

No, the 3D glasses and monitor are polarized at an angle. If you rotate the monitors into portrait then they turn completely black when looking through the glasses.

cybereality wrote:

BHawthorne wrote:Anyone know if it supports 2x1 spanning? Is this 900-series specific or will it work on 700-series too?

Looks like 1 x 2 and 2 x 1 are options (I have 980). I didn't click on them since I like my setup and my computer just got jacked up trying to mess with it (I'm just happy it works now, so I'll leave it alone).


BHawthorne wrote:Slightly OT but doesn't hurt to ask, anyone know if the current Nvidia 3D Vision Surround works in portrait mode? A few years ago I knew it didn't. With the changes in Nvidia Surround I thought I'd revisit the question again.

No, the 3D glasses and monitor are polarized at an angle. If you rotate the monitors into portrait then they turn completely black when looking through the glasses.

Excellent to know 2x1 is an option for GTX980. Definitely the information I was looking for.

That might be so for LCD, but I'm talking projector where there is no polarized screen. I'm used to Nvidia 3D Vision Surround with triple Optoma GT720. Looking to upgrade in either 2015 or 2016 to Laser-LED projectors that'll allow portrait orientation mounting. That 1920 pixel height on portrait sounds very appealing for projector users. Adding in 3D Vision Kit would just be icing on the cake.

A few years ago when I last checked 3D Vision Kit in portrait the driver would lock the option out saying it's not available. I'm mostly curious to see if the option is still locked out. Projector would be fine with 3D Vision Kit portrait, but the driver might not be ok with it still.

I gave it a go, but unfortunately the stereo 3D settings disappear when in portrait Surround. Sorry.

No worries, was pretty much expecting it. Very good to see the new 2x1, 4x1 and 5x1 options though. That puts things in parity with Eyefinity. It's always been an issue with 2x1 because I'd have to expalin why AMD Eyefinity was able to do 2x1, 3x1, 4x1 and 5x1 but Nvidia was only able to do 3x1. That went on for years. Glad to see that Nvidia is caught up again. Makes it less confusing for me to explain spanning mode options for projectors now.

There is no option and NEVER will be for 3D Vision to work in 3D Surround with Monitors...
A LCD is refreshed Top->Bottom. Putting each monitor 90 degrees shifted will mean this rule breaks...
The way 3D Surround works is by making a huge resolution and one logical screen on which ONE Refresh rate is applied across the WHOLE Surround Virtual Screen.

If you try to do this in portrait mode you can't unless you HAVE monitors that can refresh in Left->Right (or Right->Left)... With projectors this is not the case...
Its basically a functional limitation.... Think about it:)

You guys keep on mentioning these silly things called monitors.

A bit of a follow up for completeness sake. We now know 2x1, 3x1, 4x1 and 5x1 is viable on Nvidia Surround. Is 2x2 and 3x4 available too?

Wow, that's one less reason to keep with AMD, now if only they had an option to map a wide gamut lcd to s-rgb like AMD does. Then they would have feature parity.

I'm using Nvidia Surround 2x1 right now on my GTX770 347.52 drivers. Never would of thought that would happen. It's a welcome surprise. Makes me wonder how it finally came about since it pretty much doesn't look like anything about WSGF brought it about.

Anyone knows if Mixed resolution works with nVidia now as well? I Really want to go to the green side but I need mixed resolution surround.

I think this was a No

Can anyone confirm whether a 5x1 portrait surround setup can run off one nvidia card e.g. from either a single 5 port 970, 980 or 980ti?

I currently run a 5x1 portrait setup on AMD and would be tempted to run it off a single 980ti if possible.

If anyone can confirm that would be appreciated.

sprewell wrote:Can anyone confirm whether a 5x1 portrait surround setup can run off one nvidia card e.g. from either a single 5 port 970, 980 or 980ti?

I currently run a 5x1 portrait setup on AMD and would be tempted to run it off a single 980ti if possible.

If anyone can confirm that would be appreciated.

No you cant, nVidia only allows you to run 4 monitors off one card. Even if it has 5 ports (like many do).

So you telling me that my 980ti sli can have a maximun of 6 monitors hooked to them? what? I though only amd could do this i almost jumped ship!

I don't see any official nvidia site saying that they support these configurations. I must be blind

ElBerryKM13 wrote:So you telling me that my 980ti sli can have a maximun of 6 monitors hooked to them? what? I though only amd could do this i almost jumped ship!

I don't see any official nvidia site saying that they support these configurations. I must be blind

No, you can only use 4 monitors off one 980ti, you will need 2 to run more.

suiken_2mieu wrote:

ElBerryKM13 wrote:So you telling me that my 980ti sli can have a maximun of 6 monitors hooked to them? what? I though only amd could do this i almost jumped ship!

I don't see any official nvidia site saying that they support these configurations. I must be blind

No, you can only use 4 monitors off one 980ti, you will need 2 to run more.

I have two thats why i said 980ti SLI

ElBerryKM13 wrote:

suiken_2mieu wrote:

ElBerryKM13 wrote:So you telling me that my 980ti sli can have a maximun of 6 monitors hooked to them? what? I though only amd could do this i almost jumped ship!

I don't see any official nvidia site saying that they support these configurations. I must be blind

No, you can only use 4 monitors off one 980ti, you will need 2 to run more.

I have two thats why i said 980ti SLI

Whoops, I mis-read that.
