 Post subject: My Setup and Hello
PostPosted: 16 May 2015, 22:25
Offline
User avatar

Joined: 03 May 2015, 18:39
Posts: 6
Hello all,

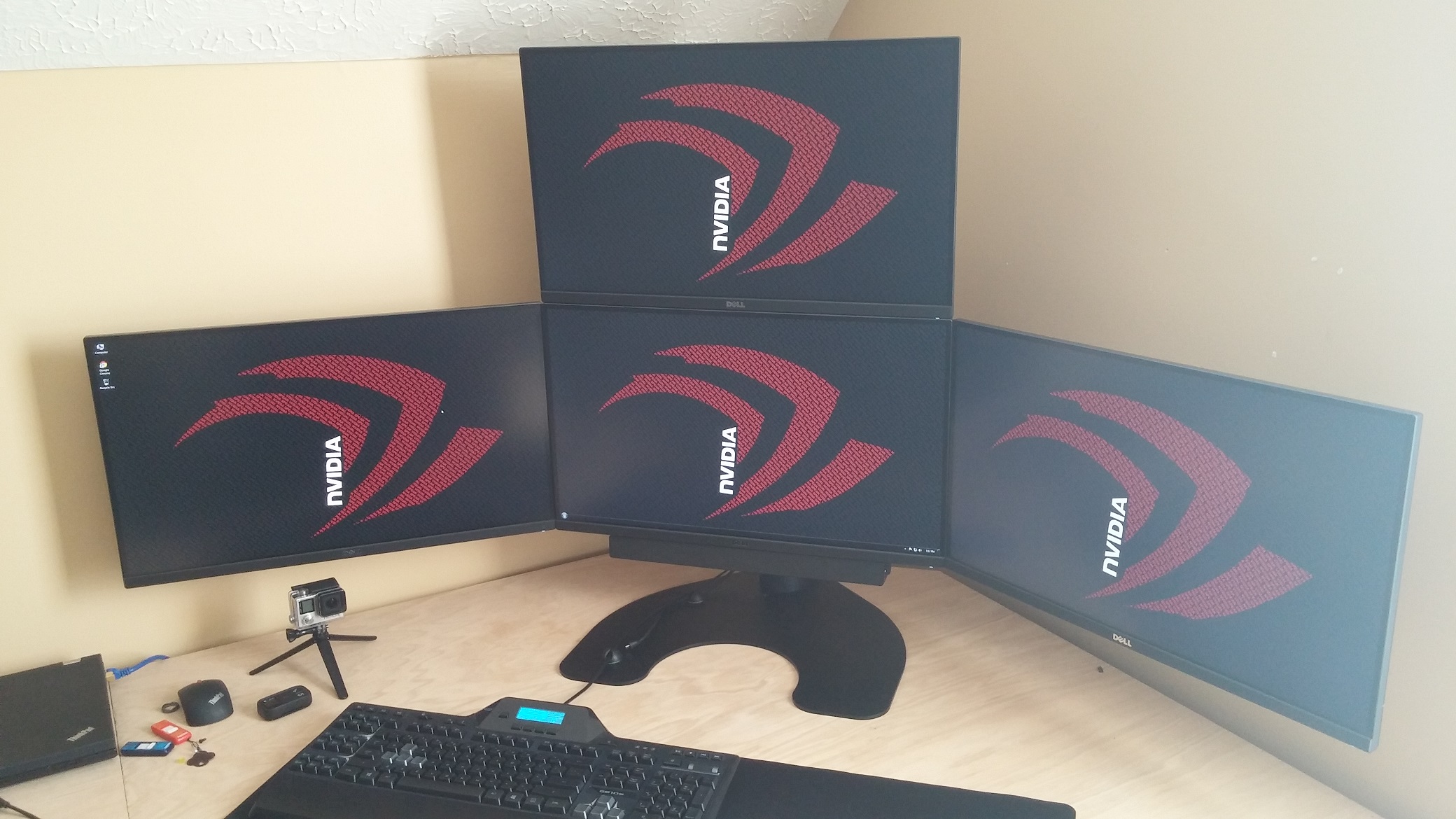

First of all my name is Mike, and i love PC gaming. GTA-V is my current fave. I just finished the upgrade from a tripple head, to a 1 over 3 setup. I attached some pics for reference. Still haven't decided if I want to angle the Monitors downward. The top monitor is a bit high. What do you guys think I should do?

Attachment:

Attachment:

Attachment:


You do not have the required permissions to view the files attached to this post.

_________________
Fractal Design Define S
EVGA X79 Classified Dark
Intel Xeon E5-2690 @ 4.0Ghz
Fractal Design Kelvin S36
32GB G-Skill 1866Mhz
2x EVGA GTX 980 Classified
2x Intel 730 SSD in Raid 0
2x WD RE4 2TB 7200 in raid 0
EVGA SuperNOVA NEX1500 Classified
3x1+1 Dell Ultrasharp u2515H in Surround 7820x1440 (Bezel Corrected)


Top




 Post subject: Re: My Setup and Hello
PostPosted: 17 May 2015, 08:31
Offline
Insiders
Insiders
User avatar

Joined: 06 Sep 2011, 09:29
Posts: 552
Location: Haarlem, the Netherlands
Hi and :welcome

That is a nice looking setup!

_________________
Philips BDM4065UC(3840x2160) Acer Z35([email protected]); 980 Ti Hybrid @stock ; 6700K 4.6ghz (1.35v)/D15; 16GB 3200mhz; Asus Maximus Ranger VIII; AX860; 1TB 960 EVO; 750GB 840 EVO; Teufel Concept D 500; Sennheiser HD6XX; Windows 10 (latest build)


Top


 Post subject: Re: My Setup and Hello
PostPosted: 17 May 2015, 18:59
Offline
Editors
Editors
User avatar

Joined: 08 May 2011, 18:58
Posts: 2286
Hi and :welcome

What model are this monitors?

_________________
We gonna send it to outa space!


Top


 Post subject: Re: My Setup and Hello
PostPosted: 17 May 2015, 20:39
Offline
User avatar

Joined: 03 May 2015, 18:39
Posts: 6
These are Dell U2515H. They are not the best for gaming, but the picture quality is amazing.

_________________
Fractal Design Define S
EVGA X79 Classified Dark
Intel Xeon E5-2690 @ 4.0Ghz
Fractal Design Kelvin S36
32GB G-Skill 1866Mhz
2x EVGA GTX 980 Classified
2x Intel 730 SSD in Raid 0
2x WD RE4 2TB 7200 in raid 0
EVGA SuperNOVA NEX1500 Classified
3x1+1 Dell Ultrasharp u2515H in Surround 7820x1440 (Bezel Corrected)


Top


 Post subject: Re: My Setup and Hello
PostPosted: 19 May 2015, 20:02
Offline

Joined: 19 May 2015, 19:45
Posts: 1
Thats so awesome. i am doing the same thing and plan to order the 1 over 3 upgrade kit, but i am worried because i know i want to tilt the top one down. how easy does it look to do? and also does the top monitor tilt down already? what ever your plan on doing be sure to include lots of pics!


Top


 Post subject: Re: My Setup and Hello
PostPosted: 23 May 2015, 22:01
Offline
Insiders
Insiders
User avatar

Joined: 20 Aug 2009, 04:20
Posts: 2351
Location: Virginia
Welcome mate, nice monitor setup, I use a similar one for my daily driver. I also really like your build, it's super clean.

_________________
System Core: | Intel Core i5-2500K + ASUS P8Z68-V + 16GB Corsair XMS3 DDR3 1333 MHz | Win7 x64 | MSI R7970 Lightning 3GB [1105/1400] |
Display: | 3 x Dell Ultrasharp 3007WFP-HC @ 7680x1600 | Dell u3011 |


Top


 Post subject: Re: My Setup and Hello
PostPosted: 24 May 2015, 11:54
Offline
Administrators
Administrators
User avatar

Joined: 27 Dec 2009, 14:27
Posts: 1789
:welcome, nice setup :)

_________________
| Gigabyte X79S-UP5-WiFi Skt2011 | i7 4820k @4.4GHz Watercooled (Ivy Bridge-E) | Corsair Vengence 32GB @2133MHz 11-11-11-27 2T Quad-Channel (8x4GB) | AMD R9-Fury-X 4GB @1140/505MHz + EKWB Watercooled | 256GB Crucial MX200 SSD | 8x 1TB Samsung F3 SATA-II | Corsair 850W TX PSU | 3x Dell S2209W 22"wide TFT's (5760x1080res) | Logitech Z-5400 5.1ch speakers | Win7 Ultimate x64 |


Top


 Post subject: Re: My Setup and Hello
PostPosted: 31 May 2015, 15:31
Offline
User avatar

Joined: 03 May 2015, 18:39
Posts: 6

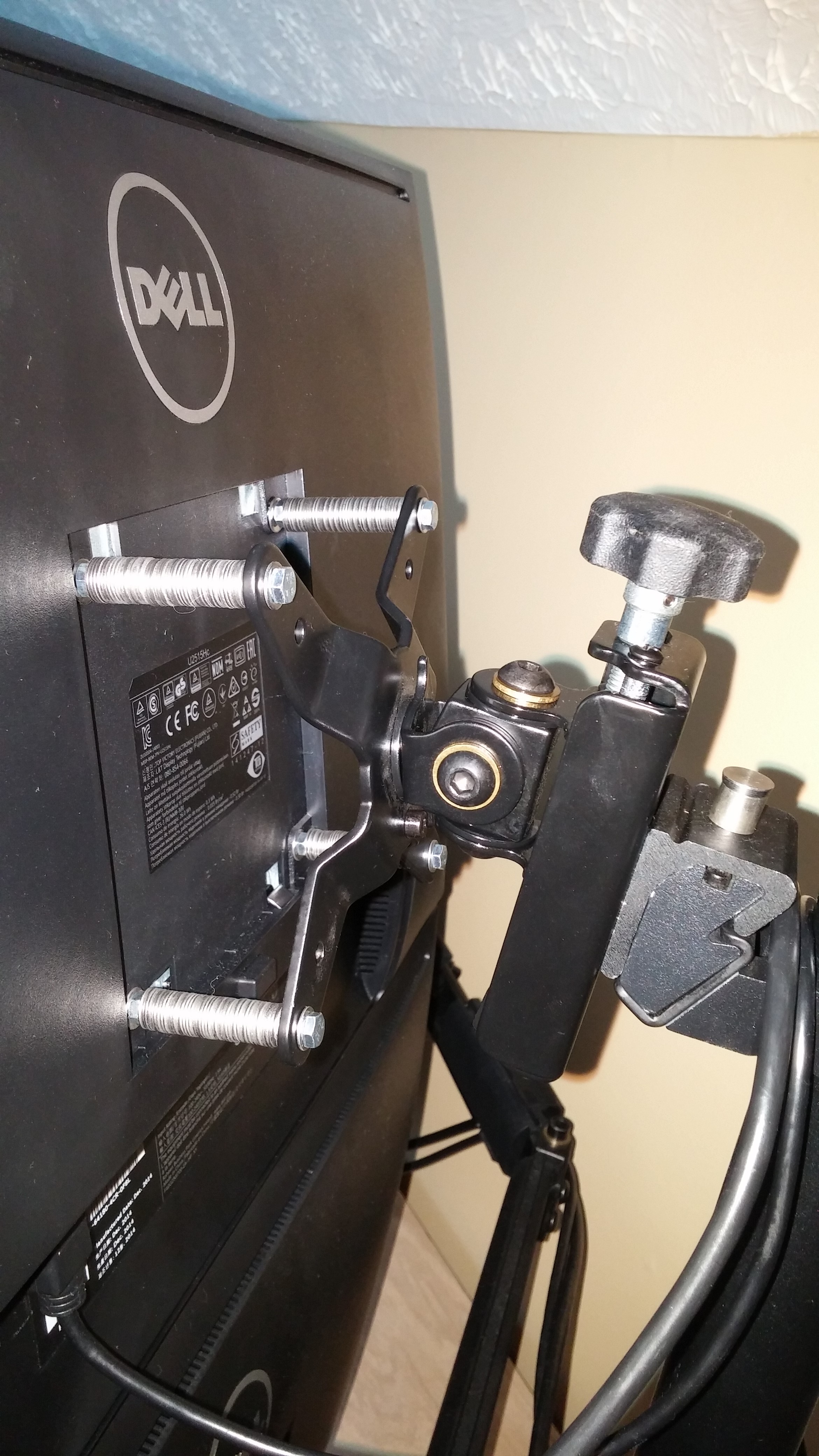

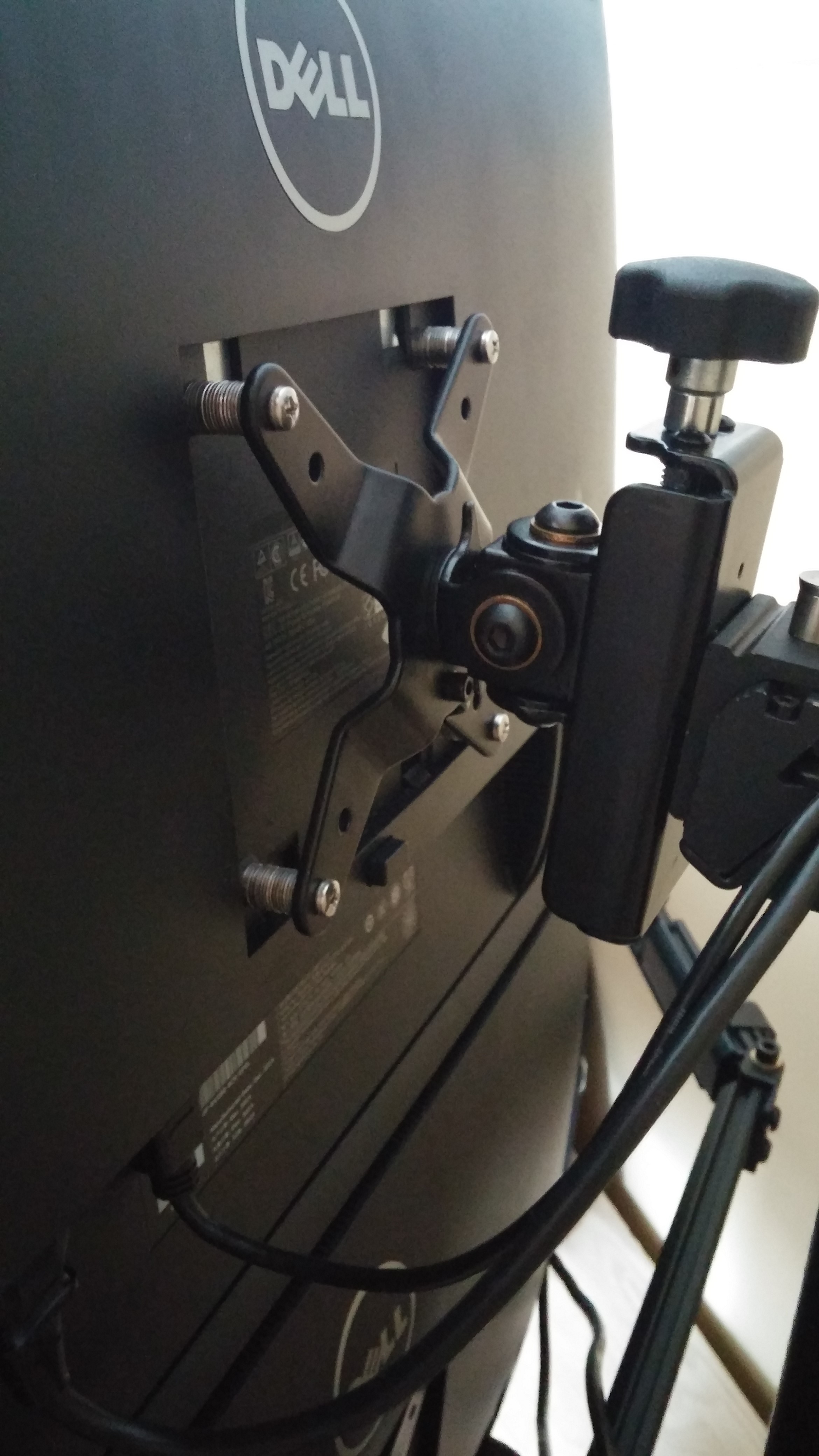

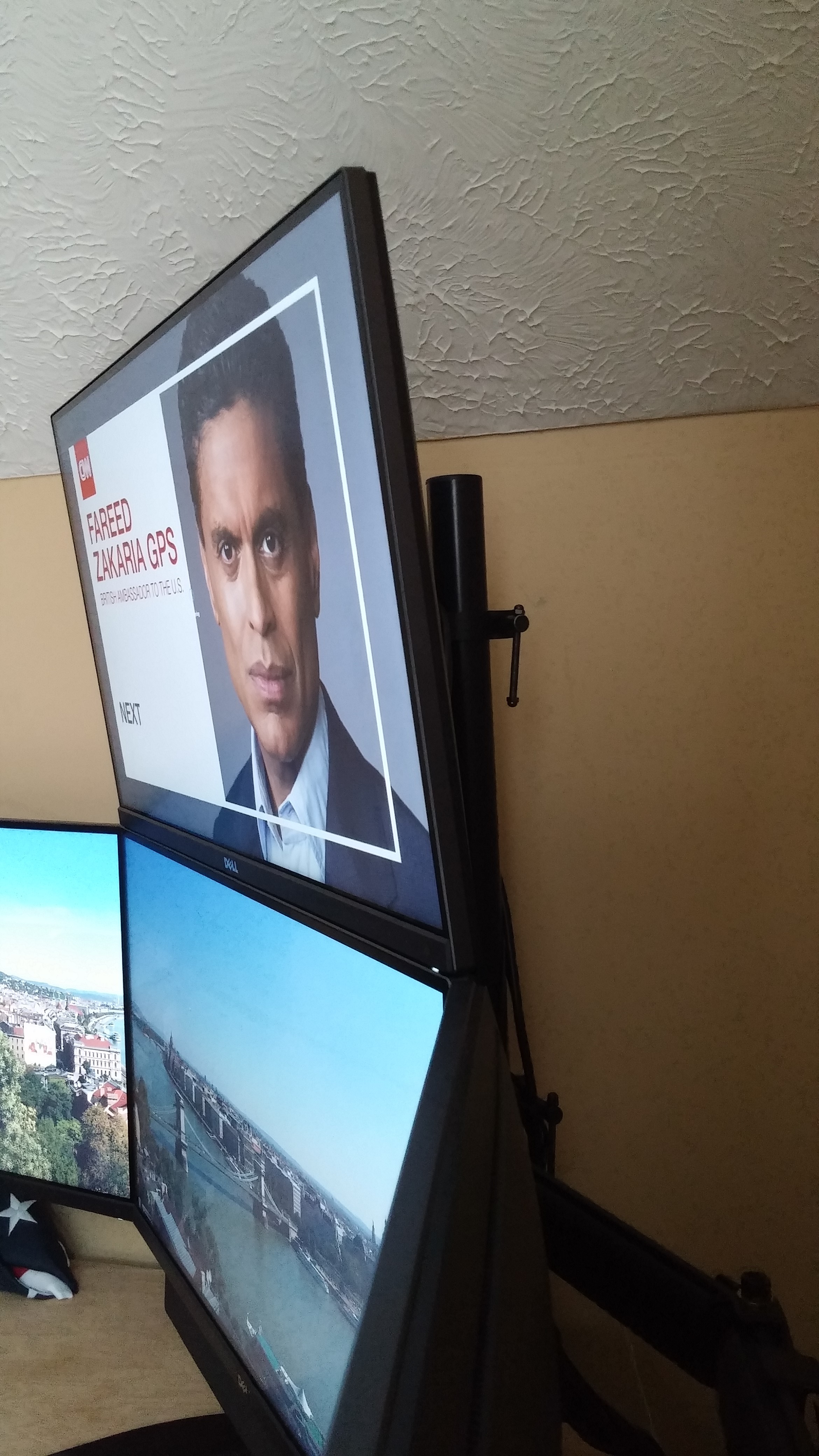

Hey guys, sorry I haven't posted an update in a while. I had some family in town, but i have made an attempt to tilt my monitor and have made some discoveries along the way.

Anyway, the Screws needed for my setup are M4 x 0.7, (This is the Screw Girth x Thread Spacing.) I believe the factory screws that came with my monitors were either 10 or 12 millimeters long. So that would make the factory screws, M4 x 0.7 x 10mm or M4 x 0.7 x 12mm.

After i figured this out, I went to my local hardware store and browsed for something I could use. I ended up finding M4 x 0.7 x 25mm screws. I thought to myself that that would be plenty of length, so I snatched them up along with a ton of washers. The washers I picked up came in packs of 36 and I bought 2 packs. When I got home, I got lazy and just divided the washers equally. (18 washers per Screw) This resulted in exactly 15mm of offset.

Attachment:

Attachment:


So as you can see, It didn't make a whole heck of difference, and I figured out that The upper bezzel will hang out over the lower bezzel, by 2x the amount of offset you apply. So my upper bezzel hangs out 30mm over the lower bezzel. If anyone has a better way to explain this feel free.

Today I will be going back to the hardware store to obtain enough hardware to set my offset to 30mm, thereby giving me an overhang of 60mm.

Stay tuned!!!


You do not have the required permissions to view the files attached to this post.

_________________
Fractal Design Define S
EVGA X79 Classified Dark
Intel Xeon E5-2690 @ 4.0Ghz
Fractal Design Kelvin S36
32GB G-Skill 1866Mhz
2x EVGA GTX 980 Classified
2x Intel 730 SSD in Raid 0
2x WD RE4 2TB 7200 in raid 0
EVGA SuperNOVA NEX1500 Classified
3x1+1 Dell Ultrasharp u2515H in Surround 7820x1440 (Bezel Corrected)


Top


 Post subject: Re: My Setup and Hello
PostPosted: 02 Jun 2015, 10:46
Offline
Insiders
Insiders
User avatar

Joined: 06 Sep 2011, 09:29
Posts: 552
Location: Haarlem, the Netherlands
Keep us posted! Always nice to see someone tinker with/mod there hardware. Ps the center monitor looks crooked in the second picture. Hope that not a mod also ;)

_________________
Philips BDM4065UC(3840x2160) Acer Z35([email protected]); 980 Ti Hybrid @stock ; 6700K 4.6ghz (1.35v)/D15; 16GB 3200mhz; Asus Maximus Ranger VIII; AX860; 1TB 960 EVO; 750GB 840 EVO; Teufel Concept D 500; Sennheiser HD6XX; Windows 10 (latest build)


Top


 Post subject: Re: My Setup and Hello
PostPosted: 07 Jun 2015, 20:12
Offline
User avatar

Joined: 03 May 2015, 18:39
Posts: 6

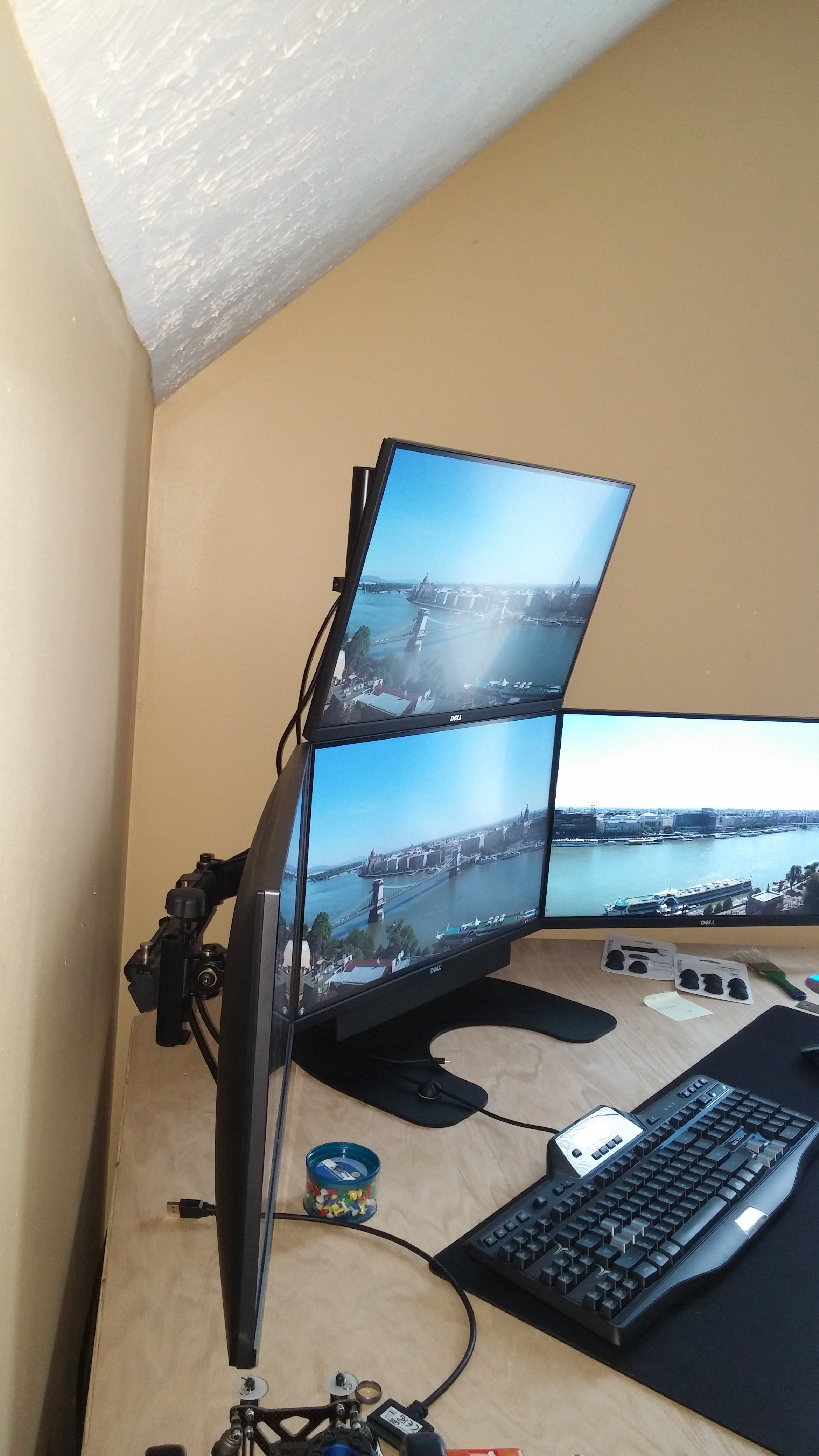

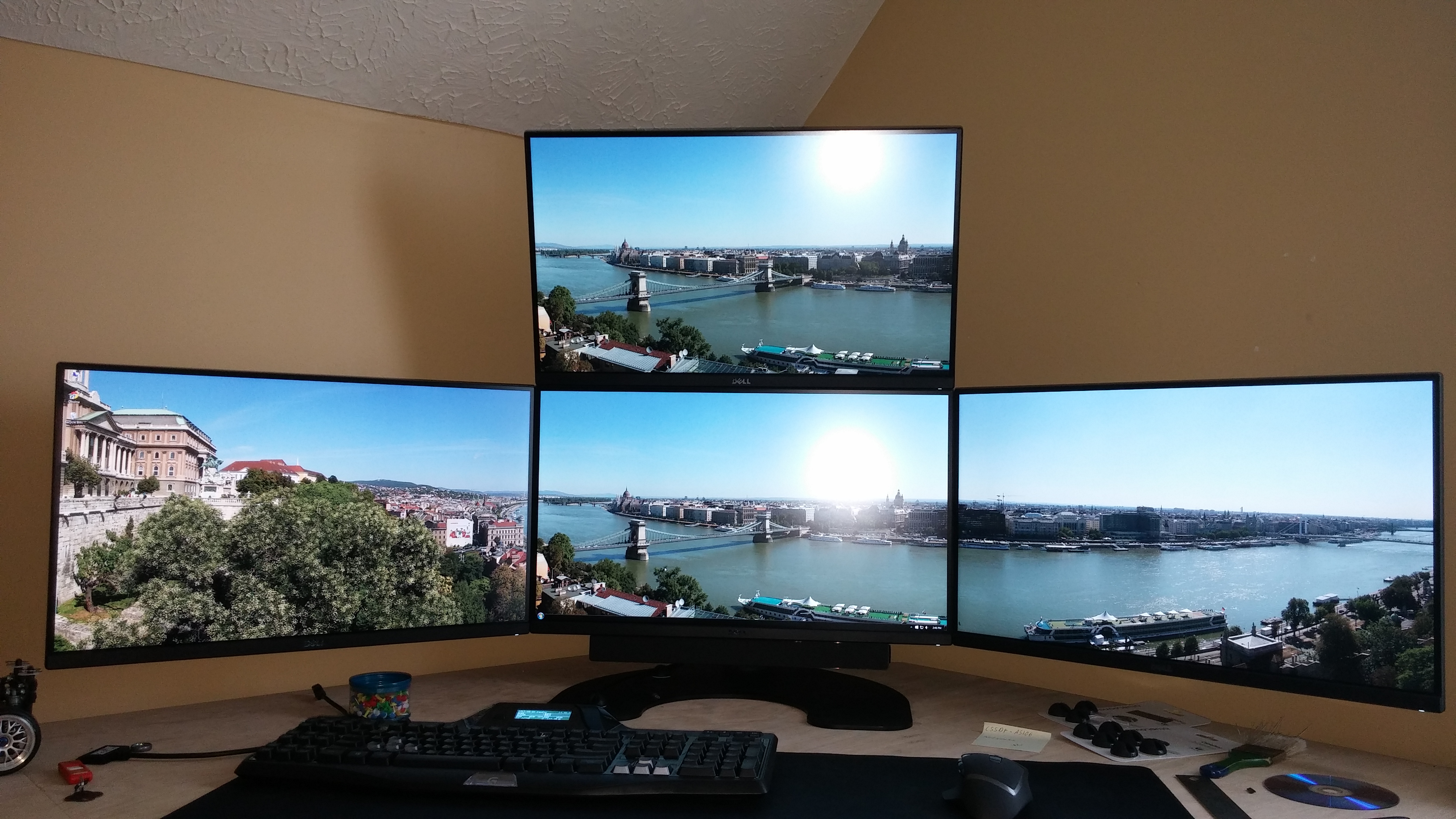

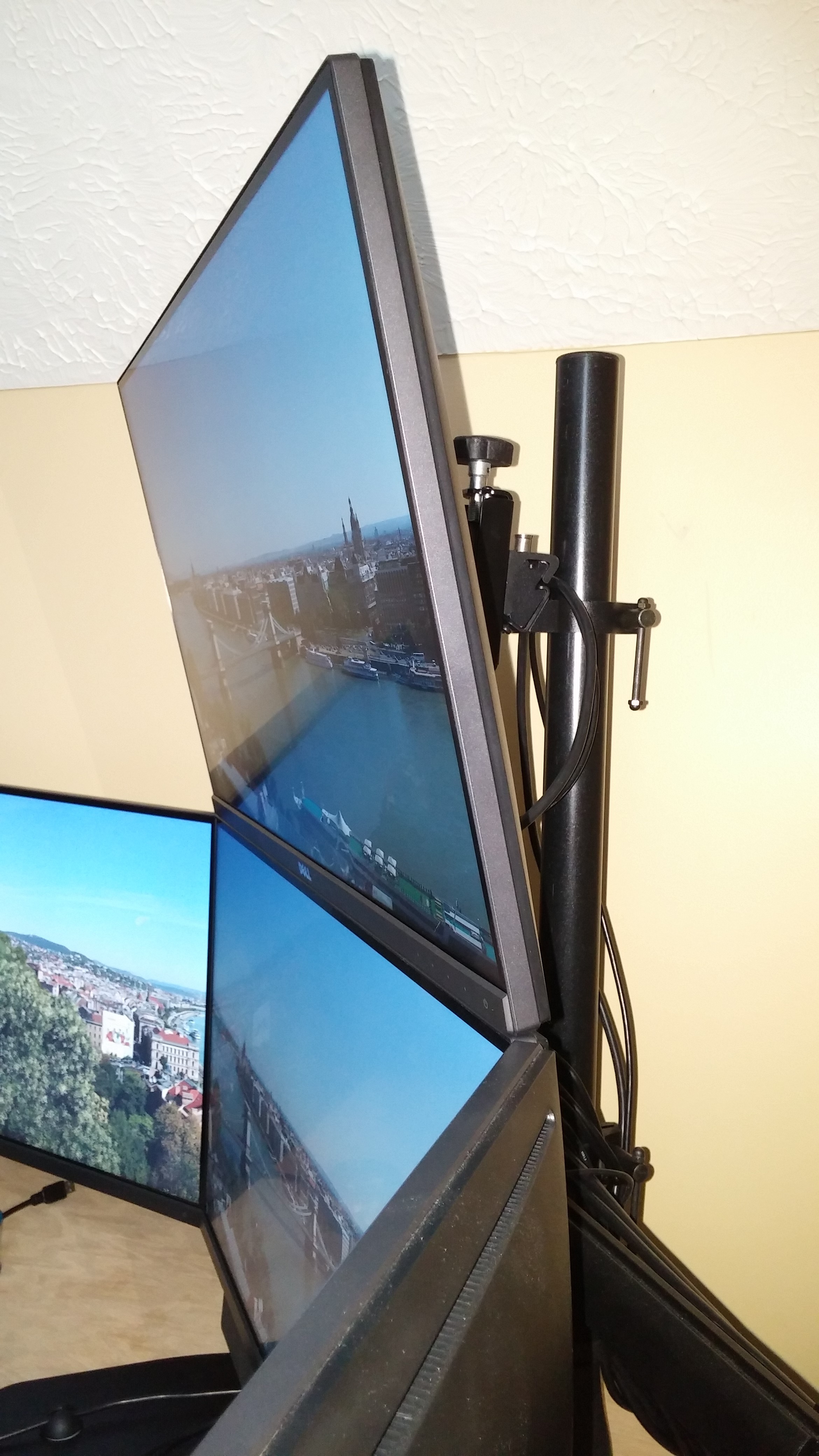

Alright well, I have finished the Job.
